MnZn Power Ferrite Material
Home >> Products >> MnZn Power Ferrite Material

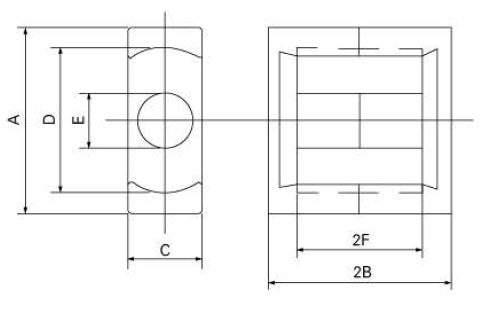

EQ EER CORES
|
型号 |
尺寸 |
重量（g） |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
EQ2512 |
25.0±0.5 |
6.0±0.20 |
18.0±0.25 |
22.0±0.5 |
11.0±0.25 |
3.5±0.2 |
17.6 |
|
EQ2513 |
25.0±0.5 |
6.6±0.20 |
18.0±0.25 |
22.0±0.5 |
11.0±0.25 |
3.5±0.2 |
21.0 |
|
EQ2612 |
26.2±0.5 |
6.3±0.20 |
18.0±0.40 |
23.0min |
11.0±0.25 |
4.3±0.2 |
19.2 |
|
EQ26D (H) |
26.7±0.5 |
7.1±0.15 |
18.0±0.3 |
23.5min |
11.0±0.2 |
4.6±0.15 |
19.5 |
|
EQ3310 |
33.0±0.6 |
5.3±0.2 |
23.5±0.3 |
28.7 min |
12.5±0.2 |
3.2±0.2 |
26 |
|
EQ3413 |
33.85±0.35 |
6.5±0.2 |
25±0.4 |
29.4 min |
14.8±0.3 |
3.8±0.2 |
40 |
|
EQ4020 |
39.8±0.7 |
10.1±0.25 |
32.6±0.30 |
35.3min |
18.9±0.30 |
6.7±0.3 |
88.6 |
|
型号 |
有效参数 |
AL值 AL(nH/N2) |
|||
|
C1 |
Le |
Ae |
Ve |
HCP4 |
|
|
EQ2512 |
0.360 |
33.8 |
93.8 |
3170 |
6000±25% |
|
EQ2513 |
0.390 |
36.4 |
93.2 |
3394 |
5200±25% |
|
EQ2612 |
0.350 |
32.0 |
104.1 |
3339 |
6000±25% |
|
EQ26D |
0.41 |
35.8 |
90.95 |
3280 |
|
|
EQ3310 |
0.29 |
38 |
129 |
4896 |
|
|
EQ3413 |
0.237 |
38 |
159 |
6081 |
|
|
EQ4020 |
0.256 |
71.9 |
280.4 |
14470 |
8500±25% |
