环型磁芯

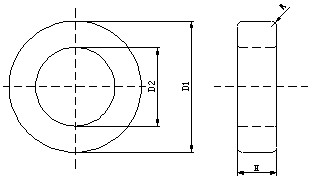

TOROIDAL CORES

Detail

型号 Type	尺寸 Dimension(mm)			重量（g）
型号 Type	D1	D2	H	重量（g）
T633	6.0±0.3	3.0±0.3	3.0±0.2	0.3
T844	8.0±0.3	4.0±0.3	4.0±0.3	0.74
T853	8.0±0.3	5.0±0.3	3.0±0.2	0.45
T953	9.0±0.3	5.0±0.3	3.0±0.2	0.6
T1055	10.0±0.3	5.0±0.3	5.0±0.3	1.4
T1062.8	10.0±0.3	6.0±0.3	2.8±0.2	0.7
T1063.5	10.0±0.3	6.0±0.3	3.5±0.2	0.85
T1064	10.0±0.3	6.0±0.3	4.0±0.2	0.96
T1065	10.0±0.3	6.0±0.3	5.0±0.3	1.2
T1264	12.0±0.4	6.0±0.3	4.0±0.3	1.6
T12.77.926.35	12.7±0.4	7.92±0.3	6.35±0.3	2.3
T1375	13.0±0.4	7.0±0.3	5.0±0.3	2.3
T1487	14.0±0.4	8.0±0.3	7.0±0.3	3.4
T1495	14.0±0.4	9.0±0.3	5.0±0.3	2.1
T14.610.53.7	14.6±0.3	10.5±0.3	3.7±0.3	1.5
T1685	16.0±0.3	8.0±0.3	5.0±0.3	3.5
T1695	16.0±0.4	9.0±0.3	5.0±0.3	3.2
T16107	16.0±0.4	10.0±0.3	7.0±0.3	4.1
T16128	16.0±0.3	12.0±0.3	8.0±0.3	3.4
T18106.35	18.0±0.4	10.0±0.3	6.35±0.3	5.3
T181010	18.0±0.4	10.0±0.3	10.0±0.3	8.3
T191110	19.0±0.4	11.0±0.3	10.0±0.3	9.1
T191311	19.0±0.4	13.0±0.3	11.0±0.3	7.98
T20107	20.0±0.4	10.0±0.3	7.0±0.3	8.0
T201010	20.0±0.4	10.0±0.3	10.0±0.3	11.5
T201210	20.0±0.4	12.0±0.4	10.0±0.3	9.8
T22148	22.0±0.4	14.0±0.4	8.0±0.3	8.8
T221410	22.0±0.4	14.0±0.4	10.0±0.3	10.8
T221412.7	22.0±0.4	14.0±0.4	12.7±0.3	13.6
T251510	25.0±0.4	15.0±0.4	10.0±0.3	14.8
T251512	25.0±0.4	15.0±0.4	12.0±0.3	18
T251513	25.0±0.4	15.0±0.4	13.0±0.3	19.5
T2614.520	26.0±0.5	14.5±0.4	20.0±0.4	35
T2812.47.6	28.0±0.4	12.4±0.3	7.6±0.3	18
T281616	28.0±0.4	16.0±0.4	16.0±0.3	31
T281813	28.0±0.4	18.0±0.4	13.0±0.3	23
T291815	29.0±0.5	18.0±0.4	15.0±0.3	29
T291915	29.0±0.5	19.0±0.4	15.0±0.3	27.2
T311814	31.0±0.5	18.0±0.5	14.0±0.4	33.6
T311913	31.0±0.5	19.0±0.5	13.0±0.4	29.5
T311915	31.0±0.5	19.0±0.5	15.0±0.4	34
T312015	31.0±0.5	20.0±0.4	15.0±0.4	31.7
T3421.821	34.0±0.6	21.8±0.6	21.0±0.4	55
T361913	36.0±0.5	23.0±0.5	15.0±0.4	45.8
T362315	36.0±0.5	23.0±0.5	15.0±0.4	44
T372215	37.0±0.5	22.0±0.5	15.0±0.4	50
T372315	37.0±0.5	23.0±0.5	15.0±0.4	48.5
T381913	38.0±0.5	19.0±0.5	13.0±0.4	52.5
T381915	38.0±0.5	19.0±0.5	15.0±0.4	60
T381921	38.0±0.5	19.0±0.5	21.0±0.4	85
T3820.515	38.0±0.5	20.5±0.5	15.0±0.4	58
T382215	38.0±0.5	22.0±0.5	15.0±0.4	55
T382515	38.0±0.5	25.0±0.5	15.0±0.4	46.3
T402320	40.0±0.8	23.0±0.6	20.0±0.5	81
T402520	40.0±0.8	25.0±0.6	20.0±0.5	73.5
T422618	42.0±0.8	26.0±0.6	18.0±0.6	74
T453015	45.0±0.8	30.0±0.6	15.0±0.4	64
T472715	47.0±0.8	27.0±0.6	15.0±0.4	84
T483010	48.0±1.0	30.0±0.5	10.0±0.3	55
T483015	48.0±1.0	30.0±0.5	15.0±0.4	79
T493115	49.0±0.6	31.0±0.6	15.0±0.4	81
T493119	49.0±0.6	31.0±0.6	18.8±0.3	103
T4931.819	49.0±0.6	31.8±0.6	18.8±0.3	96
T4933.819	49.0±0.6	33.8±0.6	19.0±0.3	90
T502520	50.0±1.0	25.0±0.6	20.0±0.6	141.3
T503020	50.0±1.0	30.0±0.6	20.0±0.6	120.6
T513113	51.0±1.0	31.0±0.8	13.0±0.4	83
T563218	56.0±1.0	32.0±1.0	18.0±0.6	143
T563620	56.0±1.0	36.0±1.0	20.0±0.6	136
T584018	58.0±1.5	40.0±1.0	18.0±0.6	120
T603820	60.0±1.5	38.0±1.0	20.0±0.6	162
T604020	60.0±1.5	40.0±1.0	20.0±0.6	150
T633812.7	63.0±1.0	38.0±0.5	12.7±0.5	120
T633825	63.0±1.5	38.0±1.0	25.0±0.8	236
T684415	68.0±1.5	44.0±0.8	15.0±0.5	152
T744013	74.0±1.5	40.0±1.0	13.0±0.4	188
T805020	80.0±1.5	50.0±1.0	20.0±0.8	293
T875414	87.0±2.0	54.0±2.0	14.0±0.5	245
T875430	87.0±2.0	54.0±2.0	30.0±1.0	526
T1005020	100.0±1.2	50.0±0.9	20.0±0.4	560
T1026615	102.0±2.0	66.0±2.0	15.0±0.6	336

磁环高度可根据客户要求调整

The height can be adjusted as customers’ requirement

型号 Type	有效参数Effective parameter				AL值 AL(nH/N²)
型号 Type	C₁ (mm^-1)	Le (mm)	Ae (mm²)	Ve (mm³)	HCP4A	HCP4	HC-5	HC-7	HC-10
T633	3.13	14.1	4.5	63.5	1300±30%	1000±30%	2250±30%	3150±30%	4200±30%
T844	2.36	18.84	8.0	150.7	1600±30%	1230±30%	2940±30%	3733±30%	5333±30%
T853	4.53	20.41	4.50	91.85	830±30%	640±30%	1500±30%	1950±30%	2770±30%
T953	3.66	22.0	6.0	132	1100±30%	850±30%	1900±30%	2600±30%	3500±30%
T1055	1.88	23.5	12.5	294	2000±30%	1530±30%	3600±30%	4660±30%	6660±30%
T1062.8	4.48	25.12	5.6	141	840±30%	650±30%	1550±30%	1960±30%	2800±30%
T1063.5	3.59	25.12	7.0	175.84	1050±30%	800±30%	1930±30%	2450±30%	3500±30%
T1064	3.14	25.12	8.0	200	1200±30%	920±30%	2200±30%	2800±30%	4000±30%
T1065	2.51	25.12	10.0	251.2	1600±30%	1200±30%	2800±30%	3800±30%	5100±30%
T1264	2.35	28.26	12	339	1600±30%	1220±30%	2900±30%	3800±30%	5100±30%
T12.77.926.35	2.13	31.2	15.17	491	1900±30%	1440±30%	3300±30%	4500±30%	6000±30%
T1375	2.09	31.4	15	471	1800±30%	1380±30%	3300±30%	4200±30%	6000±30%
T1487	1.64	34.54	21.0	725	2300±30%	1760±30%	3900±30%	5460±30%	7000±30%
T1495	2.89	36.1	12.5	452	1400±30%	1060±30%	2400±30%	3300±30%	4400±30%
T14.610.53.7	5.19	39.41	7.58	298	730±30%	550±30%	1330±30%	1700±30%	2400±30%
T1685	1.88	37.68	20.0	754	2200±30%	1660±30%	3800±30%	5200±30%	6900±30%
T1695	2.24	39.25	17.5	686.87	1680±30%	1290±30%	2800±30%	3920±30%	5600±30%
T16107	1.94	40.82	21	857.22	1950±30%	1480±30%	3230±30%	4523±30%	6450±30%
T16128	2.75	43.96	16	703	1500±30%	1100±30%	2500±30%	3500±30%	4600±30%
T18106.35	1.73	43.96	25.4	1116.58	2400±30%	1800±30%	4100±30%	5600±30%	7500±30%
T181010	1.1	43.96	40	1758.4	3800±30%	2800±30%	6500±30%	8800±30%	11800±30%
T191110	1.18	47.1	40	1884	3200±30%	2450±30%	5860±30%	7460±30%	10660±30%
T191311	1.52	50.24	33	1657.92	2470±30%	1900±30%	4550±30%	5800±30%	8300±30%
T20107	1.34	47.1	35	1648.5	2900±30%	2150±30%	5150±30%	6550±30%	9340±30%
T201010	0.942	47.1	50	2355	4200±30%	3300±30%	6930±30%	9200±30%	13860±30%
T201210	1.25	50.24	40	2009	3000±30%	2300±30%	5500±30%	7000±30%	10000±30%
T22148	1.76	56.52	32	1808.64	2300±30%	1700±30%	4000±30%	5000±30%	7200±30%
T221410	1.41	56.52	40	2260.8	2700±30%	2100±30%	5000±30%	6300±30%	9000±30%
T221412.7	1.11	56.52	50.8	2871	3800±30%	3000±30%	7800±30%	9200±30%	11500±30%
T251510	1.25	62.8	50	3140	2900±30%	2200±30%	5400±30%	7500±30%	9200±30%
T251512	1.04	62.8	60	3768	3900±30%	2900±30%	6700±30%	9200±30%	12000±30%
T251513	0.96	62.8	65	4082	4300±30%	3200±30%	7300±30%	10000±30%	13300±30%
T2614.520	0.55	63.58	115	7312.2	6800±30%	5250±30%	11700±30%	16300±30%	23000±30%
T281616	0.72	69.08	96	6631.68	5600±30%	4600±30%	8950±30%	12500±30%	17900±30%
T281813	1.11	72.22	65	4694.3	4000±30%	3000±30%	5500±30%	7600±30%	11000±30%
T291815	0.89	73.79	82.5	6087	4200±30%	3200±30%	7700±30%	9800±30%	14000±30%
T291915	1.00	75.36	75	5652	3750±30%	2870±30%	6800±30%	9000±30%	12000±30%
T311814	0.84	76.93	91	7000	4500±30%	3400±30%	8600±30%	10500±30%	14000±30%
T311913	1.00	78.5	78	6123	3800±30%	2800±30%	7000±30%	8800±30%	12700±30%
T311915	0.87	78.5	90	7065	4700±30%	3700±30%	7800±30%	11200±30%	13600±30%
T312015	0.97	80.07	82.5	6605.7	3880±30%	3000±30%	5900±30%	9000±30%	12000±30%
T3421.821	0.68	87.6	128.1	11222	5500±30%	4230±30%	10100±30%	12850±30%	18360±30%
T361913	0.75	80.78	106.8	8628	5300±30%	3700±30%	8800±30%	12000±30%	16000±30%
T362315	0.95	92.63	97.5	9032	4000±30%	3200±30%	7400±30%	9300±30%	13500±30%
T372215	0.82	92.63	112.5	10420	4270±30%	3500±30%	7627±30%	10677±30%	15250±30%
T372315	0.89	94.2	105	9891	4200±30%	3220±30%	7700±30%	9800±30%	14000±30%
T381913	0.722	89.49	123.5	11052	5200±30%	4000±30%	9500±30%	12100±30%	17300±30%
T381915	0.628	89.49	142.5	12752	6000±30%	4600±30%	11000±30%	14000±30%	20000±30%
T381921	0.448	89.49	199.5	17853	8400±30%	6440±30%	15400±30%	19600±30%	28000±30%
T3820.515	0.7	91.8	131	12054	5400±30%	4140±30%	9900±30%	12600±30%	18000±30%
T382215	0.785	94.2	120	11304	4800±30%	3680±30%	8800±30%	11200±30%	16000±30%
T382515	1.01	98.9	97.5	9643	3714±30%	2850±30%	6800±30%	8666±30%	12380±30%
T402320	0.581	98.9	170	16814.7	6500±30%	5000±30%	11800±30%	15100±30%	21500±30%
T402520	0.68	102	150	15307	5530±30%	4240±30%	10150±30%	12920±30%	18450±30%
T422618	0.741	106.76	144	15373	5080±30%	3896±30%	9317±30%	11858±30%	16941±30%
T453015	1.046	117.75	112.5	13246.8	3600±30%	2760±30%	6600±30%	8400±30%	12000±30%
T472715	0.77	116.18	150	17427	4860±30%	3730±30%	8900±30%	11350±30%	16210±30%
T483010	1.36	122.46	90	11021	2800±30%	2130±30%	5070±30%	6500±30%	9230±30%
T483015	0.91	122.46	135	16532	4500±30%	3400±30%	7800±30%	10600±30%	14000±30%
T493115	0.93	125.6	135	16956	4050±30%	3100±30%	7430±30%	9500±30%	13500±30%
T493119	0.735	125.6	171	21477	5130±30%	3950±30%	7800±30%	11900±30%	17100±30%
T4931.819	0.77	126.8	163.4	20728	5130±30%	3950±30%	7800±30%	11900±30%	17100±30%
T4933.819	0.9	130	144.4	18771	4185±30%	3200±30%	7670±30%	9765±30%	13950±30%
T502520	0.471	117.75	250	29437.5	8000±30%	6133±30%	14666±30%	18666±30%	26666±30%
T503020	0.628	125.6	200	25120	5600±30%	4600±30%	10000±30%	14000±30%	24000±30%
T513113	0.99	128.74	130	16736	3800±30%	2900±30%	6900±30%	9000±30%	12600±30%
T563218	0.639	138.16	216	29842	5900±30%	4500±30%	10800±30%	13500±30%	19600±30%
T563620	0.575	138.16	240	33158.4	5220±30%	2300±30%	9500±30%	12100±30%	17300±30%
T584018	1.0	150.7	144	21703	3960±30%	3050±30%	7200±30%	9250±30%	13200±30%
T603820	0.7	153.8	220	33849	5385±30%	4130±30%	9870±30%	12560±30%	17950±30%
T604020	0.785	157	200	31400	4800±30%	3680±30%	8800±30%	11200±30%	16000±30%
T633812.7	0.99	158.57	158.75	25172.99	3800±30%	2900±30%	6840±30%	8800±30%	12500±30%
T633825	0.50	158.57	312.5	59553	8500±30%	6500±30%	15500±30%	19800±30%	28300±30%
T684415	0.976	175.84	180	31651.2	3850±30%	2950±30%	7000±30%	9000±30%	12800±30%
T744013	0.809	178.98	221	39554	4650±30%	3550±30%	8500±30%	10800±30%	15500±30%
T805020	0.68	204.1	300	61230	5500±30%	4250±30%	10100±30%	12900±30%	18000±30%
T875414	0.958	221.3	231	51136.47	3950±30%	3000±30%	7200±30%	9000±30%	13000±30%
T875430	0.45	221.37	495	109578	8400±30%	6450±30%	15000±30%	19500±30%	28000±30%
T1005020	0.471	235.5	500	117750	8000±30%	6100±30%	14600±30%	18600±30%	26600±30%
T1026615	0.977	263.76	270	71215	3850±30%	2950±30%	7000±30%	9000±30%	12500±30%
