MnZn Power Ferrite Material
Home >> Products >> MnZn Power Ferrite Material

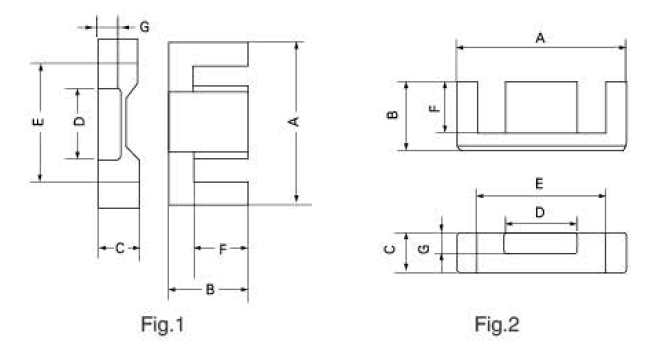

图例1
|
型号 Type |
图例 |
尺寸 Dimension |
重量 g |
||||||
|
A |
B |
C |
D |
E |
F |
G |
|||
|
EFD1113 |
1 |
11.1±0.15 |
6.7±0.10 |
4.0±0.10 |
4.1±0.10 |
8.1±0.15 |
4.90±0.10 |
2.05±0.10 |
2.1 |
|
EFD1515 |
1 |
15.5±0.35 |
7.6±0.25 |
4.8±0.20 |
5.2±0.20 |
11.0min |
5.55±0.20 |
2.20±0.15 |
3.2 |
|
EFD20-6.8 |
1 |
20.5±0.60 |
10.0±0.15 |
6.8±0.30 |
8.9±0.20 |
15.4±0.50 |
7.70±0.20 |
3.60±0.15 |
8.5 |
|
EFD20D |
1 |
20.6±0.40 |
10.1±0.25 |
6.6±0.30 |
8.9±0.20 |
16.0 min |
7.80±0.25 |
3.60±0.15 |
8.5 |
|
EFD2027 |
2 |
20.0±0.55 |
13.8±0.30 |
7.8±0.25 |
8.9±0.25 |
.9±0.40 |
10.50±0.25 |
3.70±0.15 |
11.9 |
|
EFD2525 |
1 |
25.6±0.60 |
12.6±0.30 |
9.1±0.40 |
11.3±0.20 |
19.3±0.60 |
9.50±0.30 |
5.15±0.20 |
18.3 |
|
EFD2532 |
1 |
25.6±0.60 |
16.0±0.20 |
9.1±0.40 |
11.3±0.20 |
19.3±0.60 |
12.80±0.20 |
5.15±0.20 |
21.2 |
|
EFD3030 |
1 |
30.5±0.50 |
15.2±0.20 |
9.1±0.20 |
14.6±0.25 |
23.0min |
11.40±0.15 |
4.90±0.15 |
25.6 |
|
EFD3130 |
1 |
31.4±0.50 |
15.3±0.20 |
9.2±0.30 |
14.6±0.25 |
23.5min |
11.50±0.20 |
4.70±0.15 |
25.8 |
|
EFD31-1 |
1 |
31.7±0.60 |
15.3±0.20 |
9.2±0.30 |
14.6±0.25 |
24.1min |
11.50±0.20 |
4.70±0.15 |
26.0 |
|
EFD3135 |
2 |
31.8±0.80 |
17.4±0.25 |
7.8±0.30 |
11.7±0.30 |
24.1±0.60 |
13.10±0.30 |
4.00±0.20 |
25.6 |
|
EFD3334 |
1 |
33.6±0.50 |
17.6±0.20 |
9.1±0.20 |
14.6±0.20 |
25.8±0.40 |
13.7±0.20 |
4.90±0.20 |
31.0 |
|
EFD34-1 |
2 |
33.7±0.60 |
23.5±0.20 |
5.0±0.15 |
17.0±0.20 |
23.5min |
18.00±0.15 |
3.00±0.10 |
37.0 |
|
EFD3444 |
2 |
33.7±0.60 |
22.3±0.30 |
5.4±0.30 |
17.0±0.20 |
23.5min |
16.80±0.30 |
3.50±0.20 |
35.5 |
|
EFD3634 |
2 |
36.5±0.70 |
16.9±0.30 |
11.5±0.40 |
15.3±0.30 |
26.6min |
11.70±0.20 |
7.50±0.20 |
50.2 |
|
EFD3835 |
2 |
37.8±0.60 |
17.7±0.20 |
7.6±0.20 |
18.7±0.30 |
29.7±0.60 |
13.00±0.20 |
3.35±0.20 |
35.0 |
|
EFD4138.5 |
2 |
41.0±0.80 |
19.2±0.3 |
11.8±0.30 |
16.6±0.40 |
31.4±0.70 |
14.5±0.2 |
6.70±0.25 |
58.2 |
|
EFD4549 |
2 |
45.7±0.60 |
24.5±0.20 |
5.95±0.25 |
24.0±0.40 |
33.0min |
17.80±0.30 |
3.00±0.20 |
47.0 |
|
EFD4649 |
2 |
45.5±0.80 |
24.3±0.20 |
6.5±0.20 |
22.75±0.3 |
33.4±0.60 |
17.70±0.20 |
3.30±0.20 |
55.4 |
|
EFD5050 |
2 |
50.5±0.70 |
25.6±0.30 |
9.0±0.30 |
23.5±0.30 |
38.0±0.40 |
18.50±0.30 |
5.00±0.30 |
84.9 |
|
型号 Type |
有效参数 |
AL值 AL(nH/N²) |
|||
|
C1(mm-1) |
Le(mm) |
Ae(mm2) |
Ve(mm3) |
HCP4 |
|
|
EFD1113 |
3.030 |
31.10 |
10.25 |
363.0 |
900±25% |
|
EFD1515 |
3.180 |
36.45 |
11.44 |
641.8 |
900±25% |
|
EFD20-6.8 |
0.830 |
46.69 |
28.50 |
1460.0 |
1800±25% |
|
EFD20D |
1.860 |
48.68 |
26.10 |
1270.0 |
1370±25% |
|
EFD2027 |
1.700 |
59.23 |
34.74 |
2057.9 |
1150±25% |
|
EFD2525 |
1.310 |
57.00 |
57.60 |
3310.0 |
2000±25% |
|
EFD2532 |
1.310 |
76.00 |
57.60 |
4150.0 |
1800±25% |
|
EFD3030 |
1.190 |
74.36 |
62.50 |
4848.1 |
2300±25% |
|
EFD3130 |
1.190 |
74.36 |
62.50 |
4848.1 |
2300±25% |
|
EFD31-1 |
1.120 |
70.99 |
63.46 |
4505.0 |
2300±25% |
|
EFD3135 |
1.780 |
83.40 |
46.80 |
4851.0 |
1900±25% |
|
EFD3334 |
1.240 |
80.45 |
64.58 |
5195.6 |
1880±25% |
|
EFD34-1 |
2.130 |
108.75 |
51.00 |
5525.5 |
1500±25% |
|
EFD3444 |
1.740 |
103.95 |
59.50 |
5851.7 |
1800±25% |
|
EFD3634 |
1.937 |
76.09 |
117.23 |
8920.0 |
3500±25% |
|
EFD3835 |
1.440 |
90.30 |
62.60 |
5929.0 |
2050±25% |
|
EFD4138.5 |
0.820 |
91.60 |
112.00 |
10259.0 |
4100±25% |
|
EFD4549 |
0.985 |
68.00 |
69.00 |
7700.0 |
2050±25% |
|
EFD4649 |
1.350 |
106.00 |
78.50 |
8321.0 |
2000±25% |
|
EFD5050 |
0.990 |
113.70 |
114.30 |
12996.0 |
2400±25% |
