MnZn Power Ferrite Material
Home >> Products >> MnZn Power Ferrite Material
|
型号 |
图例 |
A |
B |
C1 |
C2 |
C3 |
D1 |
D2 |
D3 |
E |
F |
G |
重量 |
|
ATQ21 |

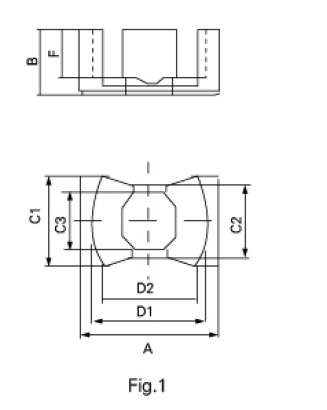

Fig.1 |
21.0±0.5 |
8.90±0.2 |
13.0±0.5 |
10.6±0.5 |
8.2±0.25 |
17.2±0.5 |
14.4±0.5 |
|
8.20±0.25 |
6.5±0.15 |
|
15.0 |
|
ATQ23.7 |

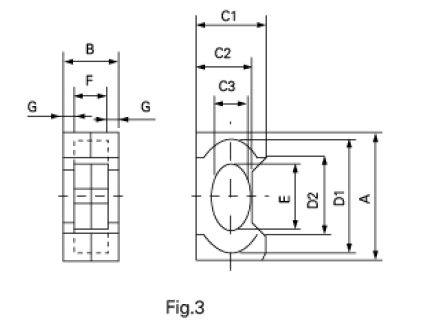

Fig.3 |
23.7±0.4 |
14.6±0.2 |
17.8±0.3 |
14.7±0.4 |
9.6±0.25 |
21.0±0.4 |
13.4 MIN |
|
12.2±0.25 |
8.6±0.3 |
3.0±0.15 |
|
|
ATQ27 |

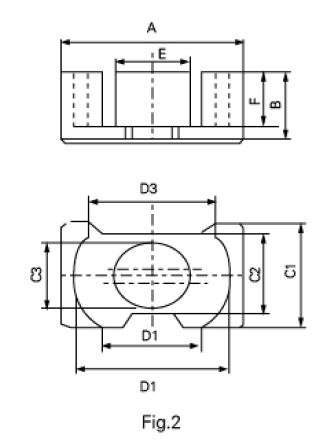

Fig.2 |
27.0±0.5 |
7.25±0.125 |
22.5±0.5 |
17.3±0.4 |
14.2±0.25 |
23.2±0.5 |
15.0±0.5 |
19.0±0.5 |
11.2±0.25 |
4.35±0.15 |
|
26.5 |
|
型号 |
有效参数 |
AL值AL（nH/N2） |
|||||
|
C1(mm-1) |
Le(mm) |
Ae(mm2) |
Ve(mm3) |
HCP4 |
HCP47 |
HCP95 |
|
|
ATQ21 |
|
44.6 |
60.2 |
2684.9 |
|
3200±25% |
|
|
ATQ23.7 |
0.371 |
38.2 |
103 |
3934.6 |
|
5800±25% |
7200±25% |
|
ATQ27 |
|
43 |
131.5 |
5654.5 |
|
6900±25% |
|
