MnZn Power Ferrite Material
Home >> Products >> MnZn Power Ferrite Material
|

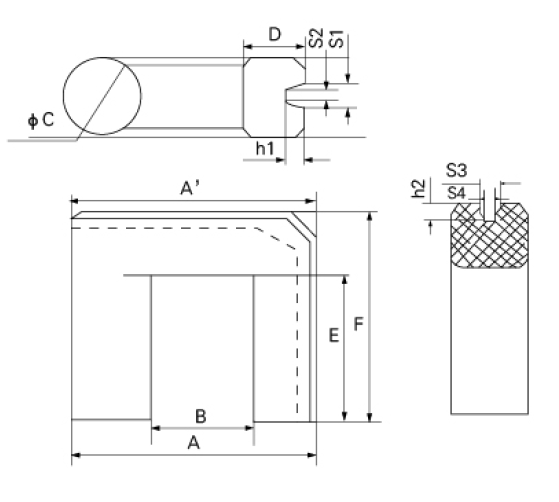

型号Type |
尺寸(mm) |
重量(g) |
|||||||
|
A |
B min |
C |
D |
E |
F |
S3*S4*h2 |
S1*S2*h1 |
||
|
U12 |
35.5±0.50 |
12.5 |
11.9±0.20 |
9.5±0.30 |
21.3±0.20 |
31.30±0.20 |
3.2*2.0*2.0 |
3.0*2.0*2.0 |
87.1 |
|
U12.5 |
35.0±0.50 |
12.0 |
12.5±0.20 |
10±0.30 |
23.2±0.20 |
33.20±0.20 |
3.0*1.8*2.5 |
2.5*1.8*2.0 |
95 |
|
U13 |
35.5±0.50 |
12.3 |
13.0±0.20 |
10±0.20 |
22.2±0.20 |
32.20±0.20 |
3.2*1.8*2.2 |
3.0*1.8*2.0 |
96.2 |
|
型号Type |
有效参数 |
AL值 AL(nH/N²) |
|||
|
C1(mm-1) |
Le(mm) |
Ae(mm2) |
Ve(mm3) |
HCP4 |
|
|
U12 |
1.28 |
142.4 |
111.0 |
17311 |
|
|
U12.5 |
1.2 |
147.0 |
122.0 |
19461 |
|
|
U13 |
1.10 |
151.3 |
128.0 |
19300 |
|
