MnZn Power Ferrite Material
Home >> Products >> MnZn Power Ferrite Material
|
Type 型号 |

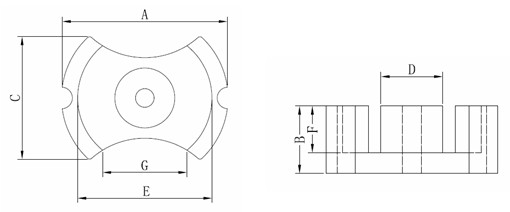

Dimension 尺寸(mm) |
||||||
|
A |
B |
C (Ref.) |
D |
E |
F |
G |
|
|
PM50 |
49.15±0.85 |
19.4±0.15 |
36.60 |
19.7±0.3 |
39.65±0.65 |
13.4±0.3 |
23.4 min |
|
PM87 |
87.00±2.50 |
35.0±0.40 |
67.0±1.5 |
31.0±0.7 |
66.5 MIN |
24.2±0.4 |
39.4 min |
|
Type 型号 |
有效参数 |
重量 g |
AL值 AL(nH/N²) |
|||
|
C1(mm-1) |
Le(mm) |
Ae(mm2) |
Ve(mm3) |
HCP4 |
||
|
PM50 |
0.227 |
84.0 |
370.0 |
31000 |
168 |
7700±25% |
|
PM87 |
0.161 |
146.0 |
910.0 |
133000 |
885 |
13000±25% |
