MnZn Power Ferrite Material
Home >> Products >> MnZn Power Ferrite Material
|

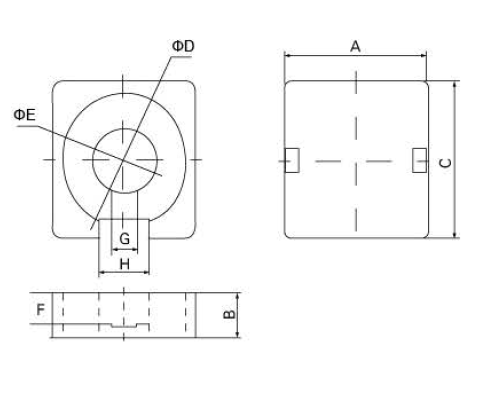

型号 Type |
尺寸 Dimension |
重量 g |
||||||
|
A |
B |
C |
D |
E |
F |
H |
||
|
CQ25A |
25.5±0.5 |
7.65±0.2 |
25.5±0.5 |
21.8 min |
12.0±0.2 |
5.15±0.2 |
9.6 min |
34.0 |
|
CQ25B |
25.5±0.5 |
8.45±0.2 |
25.5±0.5 |
21.8 min |
12.0±0.2 |
5.15±0.2 |
9.6 min |
39.5 |
|
CQ32 |
32.5±0.5 |
10.60±0.2 |
32.5±0.5 |
28.5±0.5 |
14.0±0.2 |
6.60±0.2 |
11.0±0.3 |
77.0 |
|
型号 Type
|
有效参数Effective parameter |
AL值 AL(nH/N2)
|
|||
|
C1(mm-1) |
Le(mm) |
Ae(mm2) |
Ve(mm3) |
HCP4 |
|
|
CQ25A |
0.399 |
49.2 |
119.6 |
5886 |
5000±25% |
|
CQ25B |
0.369 |
50.4 |
136.5 |
6880 |
5000±25% |
|
CQ32 |
0.250 |
48.2 |
189.0 |
9110 |
7400±25% |
