MnZn Power Ferrite Material
Home >> Products >> MnZn Power Ferrite Material
型号 |

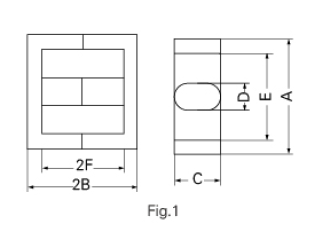

图例 |
尺寸 |
||||||
A |
B |
C |
D |
E min |
F |
G |
||
EDR2510 |
2 |
25.0±0.4 |
5.15±0.15 |
12.15±0.20 |
21.6±0.3 |
8.1 |
3.65±0.15 |
2.95±0.15 |
EDR2609 |
2 |
26.0±0.5 |
4.60±0.20 |
13.50±0.50 |
21.7±0.3 |
10.4 |
2.70±0.20 |
2.70±0.20 |
EDR2810 (H) |
2 |
28.0±0.5 |
5.15±0.15 |
13.6±0.3 |
25.3±0.3 |
10.7±0.6 |
3.6±0.25 |
|
ED2821 |
1 |
28.0±0.5 |
10.40±0.30 |
12.10±0.50 |
8.5±0.2 |
20.5 |
6.70±0.30 |
|
ED2929 |
1 |
29.8±0.8 |
14.80±0.20 |
11.60±0.20 |
8.4±0.2 |
21.8 |
11.20±0.20 |
|
ED2919 |
1 |
29.3±0.4 |
9.15±0.15 |
11.70±0.20 |
8.4±0.2 |
21.5 |
6.10±0.20 |
|
EDR3208 (H) |
2 |
32.0±0.5 |
4.10±0.20 |
11.70±0.40 |
27.8±0.2 |
8.7 |
2.65±0.20 |
2.20±0.20 |
ED3814 |
3 |
38.2±0.5 |
7.35±0.20 |
14.00±0.20 |
32.0min |
6.0±0.2 |
4.60±0.20 |
|
ED4019 |
1 |
40.8±0.5 |
9.70±0.20 |
21.85±0.25 |
11.0±0.3 |
30.3 |
6.25±0.25 |
|
EDR4111 |
2 |
41.3±0.5 |
5.65±0.15 |
19.6±0.4 |
37.2±0.35 |
14.7 |
3.15±0.2 |
4.5±0.25 |
ED4214-2 |
3 |
42.7±0.5 |
7.2±0.15 |
15.0±0.3 |
7.0±0.25 |
36.2±0.5 |
4.4±0.15 |
|
ED4314 |
3 |
43.6±0.5 |
7.35±0.20 |
16.00±0.25 |
7.4±0.2 |
36.8 |
4.60±0.20 |
|
EDR5111 |
2 |
50.8±0.8 |
5.6±0.15 |
19.8±0.4 |
48.5±0.5 |
15.0±0.6 |
3.3±0.2 |
4.6±0.35 |
ED5114 |
3 |
50.0±0.6 |
7.2±0.15 |
27.0±0.35 |
41.4±0.6 |
10.55±0.25 |
4.3±0.15 |
|
型号 |
有效参数 |
重量(g) |
AL值 AL(nH/N2) |
||
Le(mm) |
Ae(mm2) |
HCP4 |
HCP95 |
||
EDR2510 |
|
|
11.3 |
4000±25% |
|
EDR2609 |
20.1 |
58.5 |
13.0 |
2370±25% |
|
EDR2810 |
42.3 |
73.2 |
12.4 |
3500±25% |
|
ED2821 |
50.3 |
90.0 |
24.0 |
3800±25% |
|
ED2929 |
69.2 |
90.0 |
33.6 |
2750±25% |
|
ED2919 |
50.3 |
90.7 |
23.2 |
|
4500±25% |
EDR3208 |
22.4 |
82.7 |
11.6 |
4400±25% |
|
ED3814 |
54.6 |
74.3 |
24.2 |
|
|
ED4019 |
61.3 |
203.0 |
62.6 |
|
11500±25% |
EDR4111 |
|
158.2 |
33.4 |
4400±25% |
|
ED4214-2 |
54 |
87 |
28.4 |
3200±25% |
|
ED4314 |
59.4 |
90.9 |
31 |
||
EDR5111 |
32.83 |
220 |
44.3 |
|
13000±25% |
ED5114 |
66.2 |
172 |
64.4 |
7000±25% |
|
