MnZn Power Ferrite Material
Home >> Products >> MnZn Power Ferrite Material
|

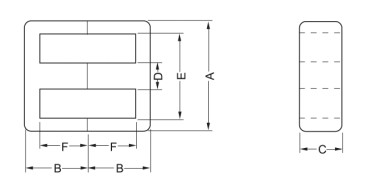

型号 Type |
尺寸 Dimension(mm) |
重量 （g） |
|||||
|
A |
B |
C |
D |
E min |
F |
||
|
EE6.5 |
6.75±0.2 |
3.25±0.15 |
3.0±0.15 |
1.3±0.15 |
5.1 |
2.55±0.15 |
0.8 |
|
EE8.3 |
8.7±0.3 |
4.1±0.2 |
3.9±0.2 |
1.85±0.15 |
6.1 |
3.1±0.2 |
1.0 |
|
EE10A |
10.2±0.3 |
5.5±0.2 |
4.75±0.15 |
2.45±0.15 |
7.9 |
4.2±0.2 |
1.9 |
|
EE10B |
10.5±0.5 |
5.5±0.15 |
9.8±0.3 |
2.4±0.3 |
7.6 |
4.3±0.2 |
4.0 |
|
EE12 |
11.9±0.4 |
6.5±0.3 |
3.7±0.2 |
2.5±0.2 |
8.6 |
4.9±0.3 |
1.9 |
|
EF12.2 |
12.2±0.3 |
5.2±0.3 |
4.0±0.3 |
3.2±0.2 |
8.8 |
3.8±0.2 |
1.84 |
|
EF12.6 |
12.6±0.4 |
6.4±0.2 |
3.6±0.2 |
3.6±0.2 |
9.0 |
4.7±0.2 |
2.3 |
|
EE13A |
13.2±0.4 |
6.3±0.3 |
6.0±0.3 |
2.7±0.3 |
10.0 |
4.7±0.3 |
3.4 |
|
EE13B |
13.2±0.4 |
6.3±0.3 |
9.8±0.3 |
2.7±0.3 |
9.8 |
4.7±0.3 |
5.6 |
|
EE13C (H) |
13.3±0.4 |
6.15±0.15 |
6.1±0.3 |
2.7±0.3 |
10.0 |
4.8±0.3 |
3.6 |
|
EE13-J |
13.25±0.3 |
7.1±0.2 |
10.0+0/-0.3 |
3.8+0/-0.3 |
9.3 |
4.8±0.2 |
6.6 |
|
EE14 |
15.7±0.30 |
7.4±0.15 |
3.0±0.1 |
3.75±0.15 |
10.0 |
5.2+0.3/-0 |
2.7 |
|
EE1612(H) |
16.0±0.4 |
5.8±0.15 |
6.9±0.15 |
4.0±0.1 |
11.85±0.25 |
3.8±0.1 |
|
|
EE16 (C H) |
16.0±0.5 |
7.3±0.3 |
5.0±0.3 |
4.0±0.3 |
11.8 |
5.2±0.3 |
4.0 |
|
EEL16A |
16.0±0.4 |
12.5±0.2 |
4.8±0.2 |
4.0±0.2 |
11.7 |
10.35±0.2 |
6.3 |
|
EEL16 |
16.8±0.5 |
12.4±0.3 |
4.85±0.25 |
4.0±0.3 |
11.8 |
10.25±0.25 |
6.3 |
|
EE16W (H) |
16.0±0.5 |
7.3±0.3 |
6.7±0.3 |
4.0±0.3 |
11.6 |
5.2±0.3 |
6.2 |
|
EE16-12W (C H) |
16.4±0.5 |
6.2±0.15 |
7.2±0.2 |
4.55±0.2 |
11.7 |
4.0±0.15 |
5.5 |
|
EE16-12W-2(H) |
16.5+0.5/-0.4 |
7.6±0.15 |
7.9±0.15 |
4.0±0.3 |
11.6 |
5.5±0.2 |
|
|
EF16 |
16.2±0.6 |
8.1±0.3 |
4.5±0.3 |
4.5±0.3 |
11.4 |
5.9±0.3 |
4.8 |
|
EE17 |
16.5+0.4/-0.3 |
8.4+0/-0.3 |
8.4+0/-0.3 |
4.7+0/-0.3 |
11.7 |
5.7+0.4/-0 |
9.1 |
|
EE19A |
19.2±0.5 |
8.1±0.3 |
5.0±0.2 |
4.6±0.3 |
14.2 |
5.8±0.3 |
5.4 |
|
EE19B |
19.2±0.5 |
8.1±0.3 |
9.5±0.3 |
4.6±0.3 |
14.2 |
5.8±0.3 |
11.1 |
|
EE1916D |
19.2±0.4 |
8.0±0.2 |
4.9±0.2 |
4.9±0.2 |
14.1 |
5.8±0.3 |
5.7 |
|
EE1918 |
19.1±0.5 |
9.9±0.25 |
5.0±0.5 |
4.55±0.5 |
14.0 |
7.6±0.15 |
6.8 |
|
EEL19A (H) |
19.1±0.3 |
13.55±0.25 |
5.0±0.2 |
4.7±0.3 |
14 |
11.15±0.35 |
8.2 |
|
EEL19B |
19.2±0.5 |
13.7±0.3 |
4.9±0.3 |
4.7±0.3 |
14.0 |
11.5±0.3 |
8.4 |
|
EE2017 |
19.80±0.40 |
8.60±0.20 |
2.20±0.20 |
8.20±0.20 |
15.20±0.40 |
6.40±0.20 |
3.6 |
|
EE20W |
21.2±0.4 |
10.3±0.2 |
10.5±0.2 |
5.5±0.2 |
15.3 |
7.4±0.2 |
15.8 |
|
EEL20 |
20.1±0.5 |
13.9±0.3 |
4.8±0.3 |
4.8±0.3 |
14.6 |
11.7±0.3 |
8.4 |
|
EF20 |
20.0±0.5 |
10.1±0.3 |
5.7±0.3 |
5.7±0.3 |
14.1 |
7.6±0.3 |
9.0 |
|
EF20 |
20.1±0.5 |
10.1±0.3 |
5.7±0.3 |
5.7±0.3 |
14.1 |
7.3±0.3 |
9.0 |
|
EF20-2 |
20.0±0.4 |
10.0±0.2 |
5.7±0.2 |
5.7±0.2 |
14.5±0.4 |
7.2±0.2 |
|
|
EF20D (H) |
20.5±0.5 |
10.2±0.3 |
5.6±0.2 |
5.6±0.2 |
14.5 |
7.5±0.3 |
9.0 |
|
EF21-10.8-1(H) |
21.0±0.4 |
9.15±0.2 |
10.8±0.2 |
5.7±0.2 |
14.9 |
6.25±0.15 |
|
|
EF21 (H) |
21.0±0.50 |
10.3±0.20 |
5.70±0.25 |
5.50±0.25 |
15.2 |
7.40±0.20 |
8.6 |
|
EE22 (H) |
22.4±0.5 |
9.5±0.4 |
5.65±0.25 |
5.65±0.25 |
16.0 |
5.6±0.4 |
9.1 |
|
EE22-1(H) |
22.0±0.4 |
9.75±0.15 |
9.6±0.2 |
5.6±0.2 |
15.6 |
5.75±0.15 |
|
|
EE22.5(H) |
22.7±0.35 |
9.65±0.15 |
16.1±0.3 |
5.7±0.3 |
16.5 |
6.2±0.15 |
|
|
EEL22 |
22.0±0.4 |
15.0±0.4 |
5.75±0.25 |
5.75±0.25 |
15.6 |
11.3±0.2 |
13.4 |
|
EEL2222 |
22.2±0.4 |
22.2±0.4 |
4.7±0.3 |
5.8±0.3 |
15.6 |
18.2±0.2 |
15.2 |
|
EE2318 |
23.0±0.4 |
9.0±0.15 |
8.2±0.2 |
7.2±0.2 |
16.6 |
5.4±0.15 |
13.9 |
|
EE2318W |
23.0±0.4 |
9.0±0.15 |
10.75±0.2 |
7.2±0.2 |
16.6 |
5.4±0.15 |
18.4 |
|
EE2416(H) |
24.2±0.4 |
8.2±0.15 |
16.4±0.3 |
6.0±0.2 |
17.8 |
5.2±0.15 |
|
|
EE25A (H) |
25.4±0.5 |
10.0±0.3 |
6.4±0.3 |
6.0±0.3 |
18.5 |
7.0±0.3 |
11.4 |
|
EE25B |
25.4±0.5 |
10.0±0.3 |
6.8±0.3 |
6.0±0.3 |
18.5 |
7.0±0.3 |
12.0 |
|
EEL25 |
25.4±0.5 |
16.3±0.4 |
6.3±0.3 |
6.3±0.3 |
18.6 |
13.3±0.4 |
17.4 |
|
EE2515W |
25.00±0.4 |
7.25±0.15 |
13.8±0.30 |
7.2±0.25 |
17.6 |
2.05±0.15 |
31.2 |
|
EE2518W(H) |
25.05±0.75 |
9.0±0.25 |
10.75±0.3 |
7.25±0.25 |
17.8 |
5.4±0.25 |
20.3 |
|
EE2518H(H) |
25.45±0.4 |
9.5±0.15 |
12.95±0.3 |
7.2±0.2 |
17.3±0.4 |
5.95±0.15 |
|
|
EE2525W |
25.05±0.75 |
12.55±0.25 |
10.75±0.3 |
7.25±0.25 |
17.5 |
8.95±0.25 |
25.7 |
|
EF25 |
25.0±0.6 |
12.5±0.4 |
7.0±0.4 |
7.0±0.3 |
18.3 |
9.2±0.3 |
15.0 |
|
EF25D |
25.05±0.75 |
12.55±0.25 |
7.2±0.3 |
7.25±0.25 |
17.5 |
8.95±0.25 |
17.4 |
|
EF25-1 (H) |
25.4±0.7 |
12.6±0.25 |
7.2±0.25 |
7.25±0.25 |
18.6 |
9.1±0.25 |
18.5 |
|
EE26-14 (H) |
26.05±0.4 |
6.95±0.2 |
10.75±0.3 |
7.25±0.25 |
18.5 |
3.55±0.2 |
16.8 |
|
EE26.5 |
26.7±0.5 |
10.8±0.3 |
11.0±0.3 |
7.2±0.3 |
19.0 |
6.8±0.3 |
24.2 |
|
EE2714 |
26.45±0.35 |
7.15±0.15 |
10.75±0.20 |
7.25±0.25 |
19.4 |
3.75±0.15 |
14.7 |
|
EE2819(H) |
28.9±0.4 |
9.2±0.15 |
10.9±0.3 |
7.3±0.25 |
20.7+0.5/-0.2 |
6.3±0.2 |
|
|
EE28 (H) |
28.5±0.6 |
10.0±0.3 |
10.4±0.3 |
7.2±0.3 |
19.0 |
6.8±0.3 |
21 |
|
EE2821T (H) |
28.40±0.5 |
10.30±0.2 |
10.70±0.3 |
7.20±0.3 |
20.00 |
6.30±0.2 |
23 |
|
EEL28 |
28.2±0.5 |
17.1±0.3 |
10.4±0.3 |
7.1±0.3 |
18.9 |
12.8±0.4 |
32 |
|
EE30 |
30.0±0.7 |
15.0±0.2 |
7.05±0.25 |
6.95±0.25 |
19.6 |
10.0±0.2 |
23.6 |
|
EE3011 |
30.0±0.5 |
13.2±0.2 |
10.7±0.3 |
10.7±0.3 |
19.8 |
8.1±0.2 |
35 |
|
EE33-27 |
33.0±0.6 |
14.3±0.3 |
12.5±0.3 |
9.4±0.3 |
23.6 |
10.0±0.2 |
43.8 |
|
EE35 |
35.0±0.5 |
14.5±0.25 |
9.5±0.3 |
9.5±0.3 |
25 |
10.0±0.3 |
33.2 |
|
EE3514 |
35.0±0.5 |
7.3±0.2 |
12.0±0.3 |
6.0±0.25 |
29.5±0.5 |
4.3±0.2 |
21.6 |
|
EE40 (H) |
40.0±0.7 |
17.5±0.4 |
11.7±0.4 |
11.5±0.4 |
27.2 |
10.6±0.4 |
63.6 |
|
EE4133 |
41.3±0.75 |
16.8±0.2 |
12.7±0.25 |
12.7±0.25 |
28.0 |
10.4±0.20 |
69.0 |
|
EE42 (H) |
42.1±0.9 |
21.2±0.4 |
14.9±0.3 |
12.0±0.3 |
29.5 |
15.4±0.3 |
94.4 |
|
EE4214 |
42.0±0.5 |
7.4±0.15 |
16.0±0.3 |
6.0±0.25 |
36.0 |
4.4±0.15 |
31.6 |
|
EE4220 (H) |
42.1±0.9 |
21.2±0.4 |
19.9±0.3 |
12.0±0.3 |
29.5 |
15.4±0.3 |
126.4 |
|
EE50 |
50.0±1.0 |
21.5±0.25 |
14.6±0.3 |
14.5±0.3 |
35±0.7 |
12.9±0.25 |
113.6 |
|
EE5154 |
50.5±1.0 |
26.8±0.2 |
12.0±0.3 |
16.0±0.25 |
33.9 |
18.8±0.2 |
120 |
|
EE55A |
55.0±1.0 |
27.5±0.3 |
17.0±0.7 |
16.7±0.3 |
37.0 |
18.8±0.3 |
192 |
|
EE55B |
55.0±1.0 |
27.7±0.3 |
20.9±0.5 |
16.9±0.3 |
37.5 |
18.8±0.3 |
232 |
|
EE56 |
56.5±1.0 |
27.8±0.3 |
20.6±0.3 |
16.85±0.3 |
37.5 |
19.0±0.3 |
237 |
|
EE5625 |
56.5±1.0 |
27.8±0.3 |
24.7±0.3 |
16.85±0.3 |
37.5 |
19.0±0.3 |
282 |
|
EE65A |
65.4±1.6 |
32.6±0.6 |
19.8±0.7 |
19.8±0.7 |
44.2 |
22.6±0.6 |
309 |
|
EE65B (C H) |
65.4±1.6 |
32.6±0.6 |
27.0±0.6 |
19.8±0.7 |
44.2 |
22.6±0.6 |
414 |
|
EE70 |
70.0±1.5 |
33.0±0.3 |
31.75±0.8 |
21.5±0.6 |
48.0 |
22.5±0.3 |
560 |
|
EE7091 |
70.0±1.0 |
45.5±0.35 |
19.5±0.3 |
19.5±0.3 |
50+0.8/-0.7 |
35.5±0.35 |
411.2 |
|
EE7091B |
70.0±1.0 |
45.5±0.35 |
29.5±0.5 |
19.5±0.3 |
50+0.8/-0.7 |
35.5±0.35 |
621 |
|
EE7091C |
70.0±1.0 |
45.5±0.35 |
39.0±0.5 |
19.5±0.3 |
50+0.8/-0.7 |
35.5±0.35 |
820 |
|
EE80 |
80.5±1.5 |
38.0±0.4 |
20.0±0.5 |
20.0±0.4 |
60 |
28.0±0.3 |
394 |
|
EE85 |
85.0±1.2 |
43.5±0.5 |
26.0±0.6 |
26.4±0.6 |
56.0 |
30.5±0.5 |
716 |
|
EE85B |
85.0±1.2 |
43.5±0.5 |
31.0±0.6 |
26.4±0.6 |
56.0 |
30.5±0.5 |
856 |
|
EE100 |
100.0±2.0 |
60.0±0.6 |
28.0±1.0 |
28.0±1.0 |
71.5 |
46.5±1.2 |
1176 |
|
EE110 |
110.0±2.0 |
56.0±0.6 |
36.0±1.0 |
36.0±1.0 |
75.0 |
38.0±0.6 |
1564 |
|
EE118 |
118.0±1.8 |
86.5±0.4 |
35.5±0.5 |
35.5±0.5 |
83.0+1.5/-1.0 |
69.0±0.4 |
2450 |
|
型号 Type |
有效参数 Effective parameter |
AL值 AL（nH/N2） |
||||||||
|
C1 (mm-1) |
Le (mm) |
Ae (mm2) |
Ve (mm3) |
HCP4A |
HCP44 |
HCP95 |
HC-5 |
HC-7 |
HC-10 |
|
|
EE6.5 |
3.85 |
16.23 |
4.21 |
68.35 |
|
|
|
|
|
1000±25% |
|
EE8.3 |
2.75 |
19.2 |
7 |
134 |
900±25% |
700±25% |
|
1200±25% |
1300±25% |
1500±25% |
|
EE10A |
2.16 |
26.1 |
12.1 |
315 |
940±25% |
800±25% |
|
1700±25% |
2000±25% |
2300±25% |
|
EE10B |
1.1 |
26.4 |
23.1 |
611.6 |
2500±25% |
1900±25% |
|
|
|
|
|
EE12 |
3.19 |
29.55 |
9.25 |
352.3 |
|
|
|
|
|
3000±25% |
|
EE12.2 |
2 |
25.5 |
12.8 |
337.9 |
|
|
|
|
|
3000±25% |
|
EF12.6 |
2.39 |
29.69 |
12.4 |
367 |
|
|
|
1660±25% |
2100±25% |
3500±25% |
|
EE13A |
1.86 |
30.2 |
16.2 |
586 |
1200±25% |
1000±25% |
|
2200±25% |
2700±25% |
3100±25% |
|
EE13B |
1.13 |
29.95 |
26.46 |
975 |
2600±25% |
2200±25% |
|
|
|
|
|
EE13C |
2.28 |
30.2 |
17.1 |
517 |
1200±25% |
1000±25% |
|
|
|
|
|
EE13-J |
0.81 |
31.24 |
38.44 |
1201 |
|
|
|
|
|
|
|
EE14 |
1.98 |
35.04 |
17.66 |
618.8 |
|
|
|
|
|
3000 MIN |
|
EE1612 |
0.734 |
29.38 |
40 |
1176.7 |
|
|
2900±25% |
|
|
|
|
EE16 |
1.8 |
34.8 |
19 |
670 |
1300±25% |
1100±25% |
|
2400±25% |
2800±25% |
3200±25% |
|
EEL16A |
2.78 |
55.67 |
20.01 |
1114 |
|
800±25% |
|
|
|
|
|
EEL16 |
2.9 |
55.1 |
19 |
1048 |
950±25% |
770±25% |
|
1700±25% |
2100±25% |
2500±25% |
|
EE16W |
1.44 |
37.9 |
26.2 |
993 |
2217±25% |
1350±25% |
|
|
|
|
|
EE16-12W |
0.92 |
30.22 |
32.69 |
987.9 |
|
1500±25% |
|
|
|
|
|
EE16-12W-2 |
1.163 |
36.52 |
31.4 |
1146.8 |
|
|
|
|
|
|
|
EF16 |
1.87 |
37.6 |
20.1 |
754 |
1300±25% |
1000±25% |
|
2300±25% |
2800±25% |
3200±25% |
|
EE17 |
1.36 |
33.99 |
24.97 |
849.0 |
|
|
|
|
|
|
|
EE19A |
1.73 |
39.8 |
23 |
910 |
1400±25% |
1200±25% |
|
2600±25% |
3100±25% |
3600±25% |
|
EE19B |
0.9 |
39.9 |
44.5 |
1777.5 |
2000±25% |
1700±25% |
|
|
|
|
|
EE1916D |
2.08 |
47.6 |
22.9 |
1090 |
|
1200±25% |
|
|
|
|
|
EE1918 |
2.08 |
47.6 |
22.9 |
1090 |
|
950±25% |
|
|
|
|
|
EEL19A |
2.78 |
62.2 |
22.4 |
1393 |
1030±25% |
830±25% |
|
1800±25% |
2300±25% |
2800±25% |
|
EEL19B |
2.65 |
62.1 |
23.4 |
1450 |
1000±25% |
840±25% |
|
|
|
|
|
EE2017 |
3.66 |
40.10 |
10.94 |
438.7 |
|
|
800±25% |
|
|
|
|
EE20W |
0.81 |
46.3 |
57.8 |
1475 |
|
2100±25% |
|
|
|
|
|
EEL20 |
2.55 |
62.74 |
24.5 |
1541.8 |
|
860±25% |
|
2800±25% |
3500±25% |
4200±25% |
|
EF20 |
1.41 |
46.55 |
32.9 |
1531.9 |
1500±25% |
1250±25% |
|
3300±25% |
4000±25% |
4700±25% |
|
EF20 |
1.41 |
46.55 |
32.9 |
1531.9 |
|
|
|
3300±25% |
4000±25% |
4700±25% |
|
EF20-2 |
1.497 |
47 |
31.4 |
1478 |
|
1300±25% |
|
|
|
|
|
EF20D |
1.38 |
43.0 |
31.0 |
1340.0 |
|
1500±25% |
|
|
|
|
| EF21-10.8-1 | 1.55 | 48.7 | 31.5 | 1534.61 |
|
3000±25% |
|
|
|
|
|
EF21 |
1.55 |
48.7 |
31.5 |
1534.6 |
|
1300±25% |
|
|
|
|
|
EE22 |
1.29 |
41.22 |
31.92 |
1749 |
2160±25% |
1790±25% |
|
3900±25% |
4700±25% |
5600±25% |
|
EE22-1 |
0.71 |
43.48 |
61.02 |
2653.1 |
|
|
|
|
|
|
|
EE22.5 |
0.466 |
45.68 |
97.96 |
4474.7 |
|
|
|
|
|
|
|
EEL22 |
1.82 |
63.6 |
35 |
2220 |
1600±25% |
1300±25% |
|
2800±25% |
3500±25% |
4200±25% |
|
EEL2222 |
3.15 |
93.2 |
29.6 |
2757 |
|
650±25% |
|
|
|
|
|
EE2318 |
0.72 |
42.6 |
59 |
2548 |
|
2500±25% |
|
|
|
|
|
EE2318W |
0.56 |
42.33 |
74.62 |
3159.5 |
|
3000±25% |
|
|
|
|
|
EE2416 |
0.42 |
41.4 |
97.91 |
4061.5 |
|
4500±25% |
|
|
|
|
|
EE25A |
1.28 |
49.5 |
38.4 |
2131 |
2300±25% |
1900±25% |
|
4100±25% |
5100±25% |
6000±25% |
|
EE25B |
1.21 |
49.5 |
40.8 |
2264 |
2300±25% |
1900±25% |
|
|
|
|
|
EEL25 |
1.9 |
76.7 |
40.4 |
3097 |
1600±25% |
1300±25% |
|
2800±25% |
3600±25% |
4300±25% |
|
EE2515W |
0.29 |
29.4 |
99.36 |
4414 |
|
4800±25% |
|
|
|
|
|
EE2518W |
0.56 |
43.6 |
77.3 |
3371 |
|
3200±25% |
|
|
|
|
|
EE2515H |
0.48 |
44.98 |
93 |
4182.91 |
|
4500±25% |
|
|
|
|
|
EE2525W |
0.75 |
56.92 |
77.9 |
4786 |
|
2850±25% |
|
|
|
|
|
EF25 |
1.22 |
57.8 |
47.2 |
2700 |
2300±25% |
1900±25% |
|
4100±25% |
5100±25% |
6000±25% |
|
EF25D |
1.06 |
57.6 |
54 |
3267 |
|
1900±25% |
|
|
|
|
|
EF25-1 |
1.15 |
57.96 |
50.03 |
2899 |
|
1900±25% |
|
|
|
|
|
EE2614 |
0.488 |
36.82 |
75.31 |
2773 |
|
3920±25% |
|
|
|
|
|
EE26.5 |
0.62 |
49.8 |
79.2 |
4578 |
4000±25% |
3600±25% |
|
|
|
|
|
EE2714 |
0.51 |
38.1 |
74.7 |
2851.5 |
|
|
|
|
|
|
|
EE2819 |
0.66 |
48.61 |
73.42 |
3569.2 |
|
3500±25% |
|
|
|
|
|
EE28 |
0.66 |
49.8 |
74.88 |
4259 |
5200±25% |
4000±25% |
|
|
|
|
|
EE2821T |
0.63 |
48.8 |
77 |
4534 |
|
3500±25% |
|
|
|
|
|
EEL28 |
0.99 |
73.65 |
73.84 |
6888 |
3100±25% |
2400±25% |
|
|
|
|
|
EE30 |
1.28 |
63 |
48.9 |
4561 |
|
2300±25% |
|
4600±25% |
|
|
|
EE3011 |
0.53 |
57.8 |
110 |
6358 |
|
4000±25% |
|
|
|
|
|
EE33-27 |
0.59 |
68.24 |
114.1 |
7786.4 |
|
4000±25% |
|
|
|
|
|
EE35 |
0.7 |
69.2 |
98.6 |
6820 |
|
3500±25% |
|
|
|
9600±25% |
|
EE3514 |
0.7 |
50.93 |
72 |
3666.6 |
|
4300±25% |
|
|
|
|
|
EE40 |
0.55 |
78.68 |
141.8 |
11161 |
|
4300±25% |
|
|
|
|
|
EE4133 |
0.47 |
77.46 |
162.1 |
12559 |
|
5500±25% |
|
|
|
|
|
EE42 |
0.6 |
97.8 |
180 |
17600 |
5000±25% |
3800±25% |
|
|
|
|
|
EE4214 |
0.59 |
56.68 |
95.68 |
5423.4 |
|
|
3800±25% |
|
|
|
|
EE4220 |
0.4 |
97.8 |
242 |
24698 |
|
5000±25% |
|
|
|
|
|
EE50 |
0.43 |
96.82 |
225.7 |
21855.6 |
|
5400±25% |
|
|
|
|
|
EE5154 |
0.62 |
118.8 |
192 |
22866 |
|
4700±25% |
|
|
|
|
|
EE55A |
0.428 |
121 |
283 |
37810 |
|
5500±25% |
|
|
|
|
|
EE55B |
0.35 |
123 |
354 |
43542 |
8000±25% |
6500±25% |
|
|
|
|
|
EE56 |
0.37 |
124.4 |
340.3 |
42336 |
|
6500±25% |
|
|
|
|
|
EE5625 |
0.28 |
124.25 |
438.47 |
54481.1 |
|
|
9000±25% |
|
|
|
|
EE65A |
0.4 |
147 |
378.9 |
58655 |
7000±25% |
5400±25% |
|
|
|
|
|
EE65B |
0.274 |
147 |
540 |
79000 |
10000±25% |
7900±25% |
|
|
|
|
|
EE70 |
0.208 |
145.5 |
700 |
101900 |
|
9500±25% |
12000±25% |
|
|
|
|
EE7091 |
0.52 |
203.6 |
386.1 |
78649.6 |
|
|
6300±25% |
|
|
|
|
EE7091B |
0.34 |
203.6 |
584.13 |
11898 |
|
|
9000±25% |
|
|
|
|
EE7091C |
0.26 |
203.6 |
772.2 |
157299 |
|
|
12500±25% |
|
|
|
|
EE80 |
0.446 |
183.5 |
399 |
73150 |
5200±25% |
4500±25% |
|
|
|
|
|
EE85 |
0.27 |
196.3 |
686 |
145320 |
|
7500±25% |
|
|
|
|
|
EE85B |
0.23 |
191.2 |
818.4 |
173271 |
|
9500±25% |
|
|
|
|
|
EE100 |
0.349 |
271 |
775 |
222726 |
|
10000±25% |
|
|
|
|
|
EE110 |
0.19 |
243.1 |
1282 |
311810 |
|
10000±25% |
|
|
|
|
|
EE118 |
0.3 |
378.6 |
1249.5 |
473134 |
|
7900±25% |
|
|
|
|
