MnZn Power Ferrite Material
Home >> Products >> MnZn Power Ferrite Material
|

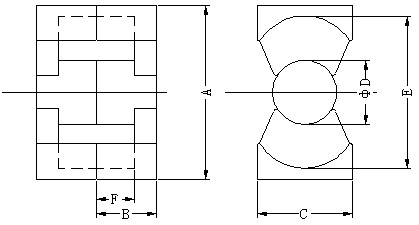

型号 Type |
尺寸 Dimension(mm) |
重量 （g） |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
PQ2016 |
21.00±0.50 |
8.30±0.15 |
14.00±0.25 |
8.80±0.15 |
17.5min |
5.40±0.15 |
14.90 |
|
PQ2020 |
21.00±0.50 |
10.25±0.20 |
14.00±0.25 |
8.80±0.15 |
17.5min |
7.30±0.20 |
17.00 |
|
PQ2016D |
22.30±0.50 |
8.30±0.15 |
14.00±0.25 |
8.80±0.15 |
18.5min |
5.40±0.15 |
15.00 |
|
PQ2620 |
26.50±0.60 |
10.10±0.25 |
19.00±0.50 |
12.00±0.30 |
22.0min |
6.10±0.25 |
33.80 |
|
PQ2625 |
26.50±0.60 |
12.80±0.40 |
19.00±0.50 |
12.00±0.30 |
22.0min |
8.70±0.30 |
39.60 |
|
PQ2620G |
26.50±0.60 |
10.30±0.15 |
19.00±0.45 |
12.00±0.20 |
22.0min |
6.00±0.30 |
34.60 |
|
PQ2720 |
27.50±0.50 |
10.00±0.20 |
19.00±0.50 |
12.00±0.30 |
23.2min |
6.00±0.30 |
32.40 |
|
PQ2725 |
27.50±0.50 |
12.50±0.20 |
19.00±0.50 |
12.00±0.30 |
23.2min |
8.50±0.30 |
38.60 |
|
PQ2720J |
27.00±0.30 |
10.00±0.15 |
19.00±0.40 |
12.00±0.20 |
23.2min |
6.00±0.20 |
32.40 |
|
PQ2720-1 |
27.4±0.60 |
10.4±0.15 |
19.00±0.40 |
12.00±0.20 |
22.3min |
6.05±0.20 |
35.00 |
|
PQ3211 |
32.50±0.70 |
5.60±0.20 |
22.00±0.50 |
13.45±0.25 |
26.0min |
2.60±0.20 |
28.70 |
|
PQ3220 |
32.50±0.70 |
10.20±0.30 |
22.00±0.50 |
13.40±0.30 |
26.0min |
5.75±0.30 |
47.30 |
|
PQ3225 |
32.50±0.70 |
12.50±0.25 |
22.00±0.50 |
13.40±0.30 |
26.0min |
8.40±0.25 |
53.10 |
|
PQ3230 |
32.50±0.70 |
15.20±0.15 |
22.00±0.50 |
13.40±0.30 |
26.0min |
10.65±0.20 |
59.20 |
|
PQ3325 |
33.00±0.50 |
11.80±0.20 |
22.00±0.50 |
13.45±0.25 |
27.7min |
8.30±0.20 |
49.20 |
|
PQ3513 |
35.00±0.60 |
6.80±0.15 |
18.60±0.40 |
12.90±0.30 |
29.8±0.60 |
4.10±0.15 |
29.40 |
|
PQ3531 |
35.00±0.60 |
15.60±0.20 |
26.00±0.50 |
14.35±0.25 |
32.0±0.50 |
10.60±0.20 |
72.00 |
|
PQ3535 |
35.00±0.60 |
17.50±0.20 |
26.00±0.50 |
14.35±0.25 |
32.0±0.50 |
12.50±0.20 |
79.00 |
|
PQ3811 |
38.00±0.65 |
5.60±0.15 |
21.32±0.40 |
14.30±0.25 |
32.8±0.65 |
2.60±0.15 |
32.10 |
|
PQ3813 |
38.00±0.65 |
6.50±0.15 |
21.32±0.40 |
14.30±0.25 |
32.8±0.65 |
3.50±0.15 |
36.20 |
|
PQ4129 |
41.50±1.00 |
14.70±0.25 |
28.00±0.60 |
14.80±0.30 |
38.0±0.90 |
9.60±0.25 |
84.20 |
|
PQ4140 |
41.50±1.00 |
19.90±0.25 |
28.00±0.60 |
14.80±0.30 |
38.0±0.90 |
14.8±0.25 |
103.8 |
|
PQ5050 |
50.00±0.70 |
25.20±0.20 |
32.00±0.50 |
20.00±0.35 |
44.0±0.70 |
18.30±0.20 |
208.00 |
注：PQ41、PQ40二者是通用的。产品材质和“B”“F”尺寸，可以根据客户做适当调整。
|
型号 Type |
有效参数 Effective parameter |
AL值 AL(nH/N2) |
|||
|
C1 (mm-1) |
Le (mm) |
Ae (mm2) |
Ve (mm3) |
HCP4 |
|
|
PQ2016 |
0.605 |
37.40 |
62.00 |
2310 |
3400±25% |
|
PQ2020 |
0.738 |
45.40 |
62.00 |
2814 |
2880±25% |
|
PQ2016D |
0.658 |
35.59 |
60.09 |
2379 |
2300±25% |
|
PQ2620 |
0.391 |
46.30 |
119.00 |
5490 |
4800±25% |
|
PQ2625 |
0.472 |
55.50 |
118.00 |
6530 |
4300±25% |
|
PQ2620G |
0.428 |
49.63 |
115.86 |
5750 |
5500±25% |
|
PQ2720 |
0.380 |
45.70 |
114.50 |
5233 |
5500±25% |
|
PQ2725 |
0.470 |
55.75 |
114.50 |
6504 |
4300±25% |
|
PQ2720J |
0.400 |
45.70 |
114.50 |
5233 |
5500±25% |
|
PQ2720-1 |
|
47.70 |
120.00 |
5724 |
5500±25% |
|
PQ3211 |
5.046 |
36.30 |
145.80 |
5300 |
8600±25% |
|
PQ3220 |
0.326 |
55.90 |
169.00 |
9447 |
6000±25% |
|
PQ3225 |
0.430 |
66.59 |
155.00 |
10321 |
5000±25% |
|
PQ3230 |
0.448 |
74.60 |
161.00 |
12000 |
4700±25% |
|
PQ3325 |
0.410 |
65.80 |
161.80 |
10663 |
5500±25% |
|
PQ3513 |
0.440 |
44.20 |
105.00 |
4641 |
5500±25% |
|
PQ3531 |
0.478 |
73.70 |
154.00 |
11355 |
4200±25% |
|
PQ3535 |
0.448 |
87.90 |
196.00 |
17260 |
4200±25% |
|
PQ3811 |
4.309 |
41.00 |
140.50 |
5760 |
7500±25% |
|
PQ3813 |
3.881 |
44.40 |
137.00 |
6080 |
7500±25% |
|
PQ4129 |
0.390 |
73.42 |
184.40 |
13577 |
4800±25% |
|
PQ4140 |
0.510 |
94.13 |
184.4 |
17361 |
3900±25% |
|
PQ5050 |
0.348 |
113.00 |
314.00 |
37623 |
6400±25% |
注：以上产品的材质，可以根据客户的要求进行调整，我司可以供应HCP4/HCP44/HCP47/HCP95等材质。
