MnZn Power Ferrite Material
Home >> Products >> MnZn Power Ferrite Material
|

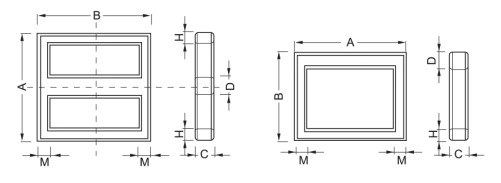

型号 Type |
尺寸 Dimension(mm) |
重量 （g） |
|||||
|
A |
B |
C |
D |
H |
M |
||
|
ET20 |
20.10±0.50 |
20.10±0.50 |
4.4±0.3 |
3.9±0.3 |
2.0±0.20 |
2.0±0.20 |
4.3 |
|
ET20-1 |
20.10±0.50 |
20.10±0.50 |
5.4±0.3 |
4.0±0.2 |
2.0±0.20 |
2.0±0.20 |
5.5 |
|
ET22 |
23.50±0.50 |
22.00±0.30 |
3.5±0.2 |
3.8±0.1 |
2.2±0.15 |
2.2±0.15 |
4.8 |
|
ET24 |
24.20±0.50 |
24.20±0.50 |
4.0±0.3 |
4.0±0.3 |
2.4±0.15 |
2.4±0.15 |
6.1 |
|
ET25 |
24.60±0.30 |
24.80±0.30 |
7.0±0.2 |
6.9±0.2 |
2.5±0.15 |
2.5±0.15 |
13.0 |
|
ET26 |
26.00±0.40 |
26.00±0.40 |
4.5±0.3 |
4.5±0.3 |
2.5±0.15 |
2.5±0.15 |
6.5 |
|
ET28 |
28.45±0.55 |
28.45±0.55 |
5.0±0.3 |
5.0±0.3 |
2.9±0.20 |
2.9±0.20 |
10.0 |
|
ET29 |
29.00±0.30 |
30.00±0.30 |
5.0±0.3 |
5.0±0.3 |
2.9±0.20 |
2.9±0.20 |
10.5 |
|
ET35 |
35.30±0.60 |
35.30±0.60 |
7.5±0.3 |
7.3±0.3 |
4.0±0.20 |
4.0±0.20 |
25.1 |
|
型号 Type |
有效参数 Effective parameter |
AL值 AL（nH/N2） |
||||||
|
C1 (mm-1) |
Le (mm) |
Ae (mm2) |
Ve (mm3) |
HC-5 |
HC-7 |
HC-10 |
HC-12 |
|
|
ET20 |
2.96 |
52.10 |
17.6 |
917 |
2000±25% |
2700±25% |
3600±25% |
4400±25% |
|
ET20-1 |
2.34 |
50.58 |
21.6 |
1092 |
5500±25% |
|||
|
ET22 |
5.00 |
66.60 |
13.5 |
899 |
1700±25% |
2000±25% |
3000±25% |
3500±25% |
|
ET24 |
3.42 |
61.00 |
17.8 |
1090 |
2000±25% |
2700±25% |
3600±25% |
4400±25% |
|
ET25 |
3.24 |
63.00 |
20.0 |
1400 |
2500±25% |
3000±25% |
4000±25% |
4600±25% |
|
ET26 |
3.12 |
66.00 |
21.1 |
1395 |
2200±25% |
2800±25% |
3600±25% |
4000±25% |
|
ET28 |
2.61 |
71.40 |
27.4 |
1950 |
2600±25% |
3600±25% |
4500±25% |
5400±25% |
|
ET29 |
2.67 |
74.50 |
27.9 |
2070 |
2600±25% |
3600±25% |
4500±25% |
5400±25% |
|
ET35 |
1.48 |
86.70 |
58.6 |
5080 |
4000±25% |
5000±25% |
6400±25% |
8500±25% |
|
型号 Type |
尺寸 Dimension(mm) |
重量 （g） |
|||||
|
A |
B |
C |
D |
H |
M |
||
|
FT1412 |
14.0±0.4 |
12.0±0.4 |
5.0±0.20 |
3.0±0.20 |
3.0±0.20 |
3.0±0.20 |
3.0 |
|
FT16 |
15.6±0.2 |
13.4±0.2 |
7.0±0.20 |
2.8±0.15 |
2.8±0.15 |
2.8±0.15 |
4.5 |
|
FT1715 |
17.8±0.2 |
15.0±0.2 |
3.6±0.20 |
4.8±0.20 |
3.0±0.20 |
3.8±0.20 |
3.5 |
|
FT1718 |
17.5±0.4 |
15.0±0.3 |
3.7±0.20 |
4.7±0.20 |
3.7±0.20 |
3.0±0.20 |
3.5 |
|
FT2014 |
20.6±0.3 |
14.2±0.3 |
4.3±0.30 |
4.2±0.20 |
2.4±0.20 |
2.4±0.20 |
3.8 |
|
FT2017 |
20.0±0.4 |
17.0±0.4 |
6.5±0.40 |
4.0±0.20 |
4.0±0.20 |
4.0±0.20 |
7.7 |
|
FT2116 |
21.5±0.2 |
15.8±0.3 |
4.6±0.20 |
4.4±0.20 |
4.4±0.20 |
3.1±0.15 |
5.0 |
|
FT2318 |
23.0MAX |
18.8±0.3 |
7.0±0.20 |
4.0±0.20 |
4.0±0.20 |
4.0±0.20 |
8.5 |
|
FT30 |
30.0±0.4 |
19.8±0.3 |
6.4±0.25 |
6.4±0.15 |
4.2±0.20 |
3.6±0.20 |
12.0 |
|
型号 Type |
有效参数 Effective parameter |
AL值 AL（nH/N2） |
||||||
|
C1 (mm-1) |
Le (mm) |
Ae (mm2) |
Ve (mm3) |
HC-5 |
HC-7 |
HC-10 |
HC-12 |
|
|
FT1412 |
2.49 |
37.4 |
15.00 |
561 |
5000±25% |
|||
|
FT16 |
2.24 |
44.0 |
19.60 |
917 |
3000±25% |
4000±25% |
5600±25% |
6700±25% |
|
FT1715 |
4.29 |
46.4 |
10.80 |
697 |
1950±25% |
2930±25% |
3900±25% |
4600±25% |
|
FT1718 |
3.47 |
47.6 |
13.69 |
690 |
1950±25% |
2930±25% |
3900±25% |
4600±25% |
|
FT2014 |
5.40 |
55.8 |
10.32 |
742 |
1600±25% |
2100±25% |
2900±25% |
3300±25% |
|
FT2017 |
2.09 |
54.5 |
26.00 |
1418 |
|
|
6500±25% |
|
|
FT2116 |
2.78 |
56.5 |
20.24 |
1070 |
2260±25% |
3390±25% |
4520±25% |
5400±25% |
|
FT2318 |
2.21 |
63.5 |
28.88 |
1833 |
3200±25% |
|||
|
FT30 |
2.91 |
78.2 |
26.90 |
2459 |
2500±25% |
3150±25% |
4500±30% |
5400±25% |
